Water Cooled Screw Chiller
Created with Pixso.

Low Noise Screw Water Cooled Chiller 170HP 157KW/Hr Cooling Capacity

Low Noise Screw Water Cooled Chiller 170HP 157KW/Hr Cooling Capacity

Brand Name: MINGO
Model Number: MG-170WS
MOQ: 1
Payment Terms: L/C,T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
China
Certification:
ISO CE
Name:
Screw Water Cooled Chiller
Cooling Capacity:
157KW
Cooling Method:
Water-cooled
Voltage:
3Ph-380V/415V-50Hz/60Hz
Compressor Type:
Semi-hermetic Screw
Energy Regulate:
0-25%-50%-75%-100%
Compressor Power:
38.5KW
Condenser:
Shell And Tube
Circulation Flow:
35.2 M3/h
Dimension:
2650mm-900mm-1900mm (L-W-H)
Ambient Temperature:
Customize
Packaging Details:
Wooden box packaging
Highlight:

Scroll Water Cooled Chiller 170HP

,

Scroll Water Cooled Chiller 157KW/Hr

,

Low Noise Scroll Water Cooled Chiller

Product Description

Water-Cooled Screw Chiller 170HP 157KW KW/Hr Cooling Capacity Wide Applications

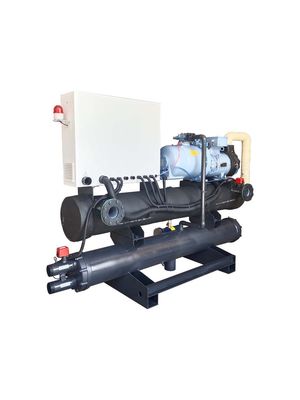

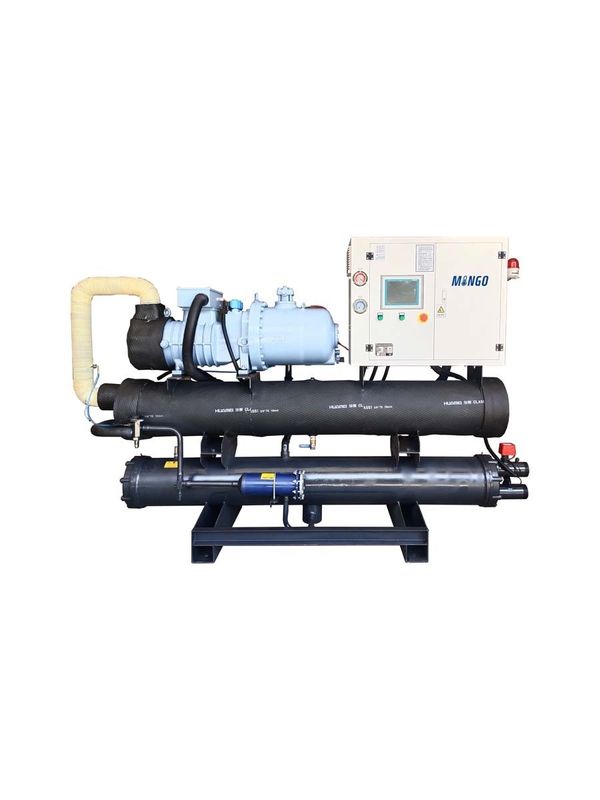

170HP Water-Cooled Screw Chiller


The 170HP Water-Cooled Screw Chiller is a high-performance cooling solution designed for medium to large industrial and commercial applications. Utilizing advanced Screw compressor technology, this chiller offers reliable efficiency and exceptional performance, making it ideal for sectors such as manufacturing, data centers, and large-scale HVAC systems.


Key Features

  • Robust Cooling Capacity: Effectively manages substantial thermal loads, ensuring consistent and reliable cooling even under demanding conditions.
  • Energy-Efficient Operation: Designed to minimize energy consumption while maximizing cooling output, leading to significant savings on operating costs.
  • Durable Construction: Built with high-quality materials that can withstand harsh industrial environments, ensuring longevity and reduced maintenance needs.

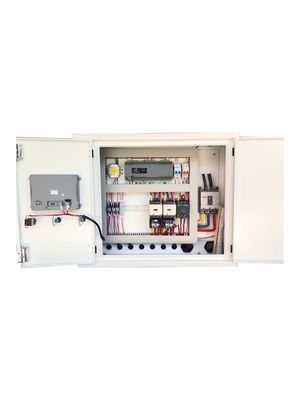

  • Intelligent Control System: Equipped with an intuitive digital control panel and remote monitoring capabilities for real-time diagnostics and adjustments.
  • Low Noise Levels: Engineered for quiet operation, making it suitable for environments where sound control is essential.
  • Compact Footprint: Space-efficient design allows for easy installation and integration into existing systems without sacrificing performance.
  • Eco-Friendly Refrigerant: Utilizes environmentally safe refrigerants that comply with international standards, supporting sustainability initiatives.


Specification:



Voltage 3/N/PE 380/220V 50Hz
Cooling capacity kW/hr 157
X1000 Kcal 135020
Compressor power kW 38.5
Electric current A 39
type Semi-hermetic screw
Refrigerant type R22, R404A, R407c, R134A
Condenser type Shell and tube
water flow m³/h 35.2
Pipe dimension 65mm
Evaporator type Shell and tube
water flow m³/h 29.3
Pipe dimension 65mm
Protection device High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection
Ambient temperature ºC 3-room


Applications:


  • Manufacturing Facilities: Ideal for cooling production machinery and maintaining optimal operational conditions, enhancing efficiency and productivity.
  • Data Centers: Provides precise cooling for critical IT infrastructure, ensuring reliable performance and minimal downtime.
  • Commercial Buildings: Supports effective climate control in large facilities, improving occupant comfort while reducing energy consumption.
  • Food and Beverage Processing: Ensures consistent temperature management during processing and storage, adhering to strict safety and quality standards.


Benefits:


  • Enhanced Reliability: Designed for continuous operation, minimizing the risk of downtime and maximizing productivity across operations.
  • Cost-Effective Performance: Energy-efficient features lead to lower utility costs, while robust construction minimizes maintenance expenses.
  • Improved Product Quality: Consistent cooling ensures high-quality outputs, reducing defects and enhancing customer satisfaction.
  • Sustainability Commitment: Compliance with eco-friendly standards supports corporate responsibility initiatives, helping businesses achieve their environmental goals.




Elevate your cooling capabilities with our 170HP Water-Cooled Screw Chiller—where efficiency meets reliability, driving performance and productivity in your operations.
