Water Cooled Screw Chiller
Created with Pixso.

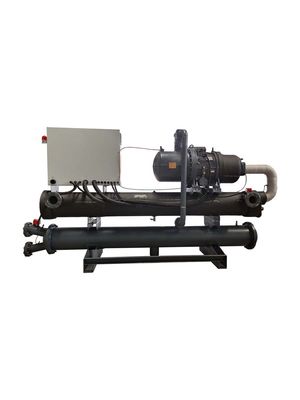

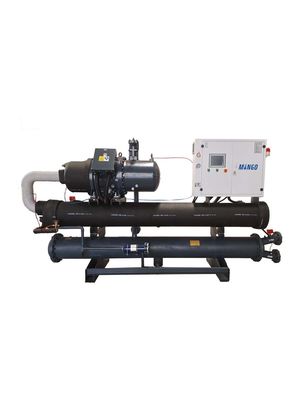

Compact Water Cooled Screw Chiller 410HP 410KW/Hr Cooling Capacity

Compact Water Cooled Screw Chiller 410HP 410KW/Hr Cooling Capacity

Brand Name: MINGO
Model Number: MG-410WS
MOQ: 1
Payment Terms: L/C,T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
China
Certification:
ISO CE
Name:
Water Cooled Screw Chiller
Cooling Capacity:
410KW
Cooling Method:
Water-cooled
Voltage:
3Ph-380V/415V-50Hz/60Hz
Compressor Type:
Semi-hermetic Screw
Energy Regulate:
0-25%-50%-75%-100%
Compressor Power:
88KW
Condenser:
Shell And Tube
Condenser CMS:
89.4 M3/h
Dimension:
2950mm-900mm-1950mm (L-W-H)
Ambient Temperature:
Customize
Packaging Details:
Wooden box packaging
Highlight:

Water Cooled Scroll Chiller 410HP

,

Water Cooled Scroll Chiller 410KW/Hr

,

Compact Water Cooled Scroll Chiller

Product Description

Water-Cooled Screw Chiller 410HP 410KW KW/Hr Cooling Capacity Eco-Friendly Refrigerant


410HP Water-Cooled Screw Chiller


The 410HP Water-Cooled Screw Chiller is a powerful and efficient cooling solution designed for large-scale industrial and commercial applications. Utilizing cutting-edge Screw compressor technology, this chiller provides exceptional performance and energy efficiency, making it ideal for sectors such as manufacturing, data centers, and expansive HVAC systems.


Key Features:


  • High Cooling Capacity: Effectively manages substantial thermal loads, ensuring reliable and consistent cooling even in demanding environments.
  • Energy-Efficient Operation: Optimized to reduce energy consumption while maximizing cooling output, resulting in significant savings on utility costs.
  • Robust Construction: Built with high-quality materials designed to withstand harsh industrial conditions, ensuring durability and minimal maintenance.

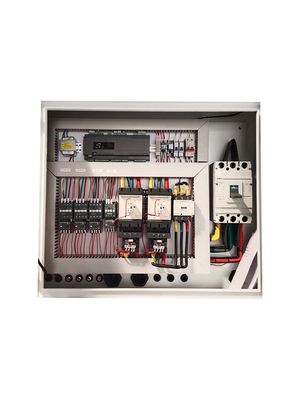

  • Advanced Control System: Features a user-friendly digital control panel with remote monitoring capabilities, allowing for real-time diagnostics and adjustments.
  • Low Noise Levels: Engineered for quiet operation, making it suitable for environments where sound control is crucial.
  • Compact Design: Space-efficient layout facilitates easy installation and integration into existing systems without compromising performance.
  • Eco-Friendly Refrigerant: Utilizes environmentally safe refrigerants that comply with international standards, supporting sustainability initiatives.


Specification:


Voltage 3/N/PE 380/220V 50Hz
Cooling capacity kW/hr 410
X1000 Kcal 352.6
Compressor power kW 88
Electric current A 150
type Semi-hermetic screw
Refrigerant type R22, R404A, R407c, R134A
Condenser type Shell and tube
water flow m³/h 89.4
Pipe dimension G4"
Evaporator type Shell and tube
water flow m³/h 68.8
Pipe dimension G4"
Protection device High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection
Ambient temperature ºC 3-room



Applications:


  • Manufacturing Facilities: Ideal for cooling production machinery and processes, enhancing overall operational efficiency and productivity.
  • Data Centers: Provides precise temperature control for sensitive IT infrastructure, ensuring reliable performance and minimizing downtime.
  • Large Commercial Buildings: Supports effective climate control in extensive HVAC systems, improving occupant comfort and reducing energy consumption.
  • Food and Beverage Processing: Ensures reliable temperature management during processing and storage, adhering to strict safety and quality standards.


Benefits:


  • Increased Reliability: Designed for continuous operation, minimizing the risk of downtime and maximizing productivity across operations.
  • Cost-Effective Performance: Energy-efficient features lead to lower operational costs, while durable construction reduces maintenance expenses.
  • Improved Product Quality: Consistent cooling ensures high-quality outputs, reducing defects and enhancing customer satisfaction.
  • Sustainability Focus: Compliance with eco-friendly standards supports corporate responsibility initiatives, helping businesses reduce their environmental impact.




Upgrade your cooling solutions with our 410HP Water-Cooled Screw Chiller—where high efficiency meets outstanding reliability, driving performance and productivity in your operations.
