Brand Name: | MINGO |
Model Number: | MG-340WS |
MOQ: | 1 |
Payment Terms: | L/C,T/T,Western Union,MoneyGram |

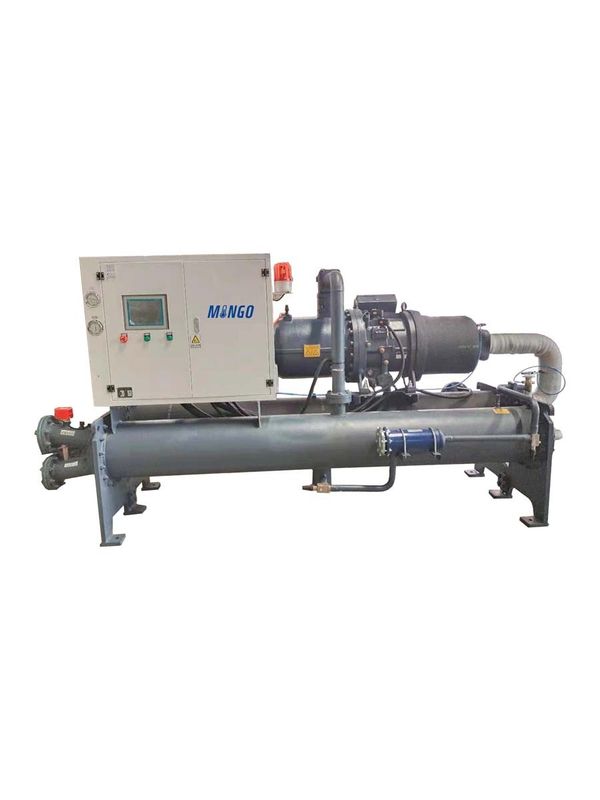

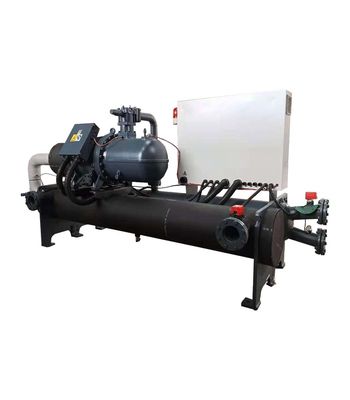

Water-Cooled Screw Chiller
The 340HP Water-Cooled Screw Chiller is a high-capacity cooling solution tailored for large industrial and commercial applications. Utilizing advanced Screw compressor technology, this chiller offers exceptional performance and energy efficiency, making it ideal for sectors such as manufacturing, data centers, and large commercial HVAC systems.
Key Features:
Specification:
Voltage | 3/N/PE 380/220V 50Hz | ||
Cooling capacity | kW/hr | 340 | |
X1000 Kcal | 292.4 | ||
Compressor | power | kW | 70 |
Electric current | A | 122 | |
type | Semi-hermetic screw | ||
Refrigerant | type | R22, R404A, R407c, R134A | |
Condenser | type | Shell and tube | |
water flow | m³/h | 74.3 | |
Pipe dimension | G4" | ||
Evaporator | type | Shell and tube | |
water flow | m³/h | 56.8 | |
Pipe dimension | G4" | ||
Protection device | High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection | ||
Ambient temperature | ºC | 3-room |
Applications:
Benefits:
Upgrade your industrial cooling solutions with our 340HP Water-Cooled Screw Chiller—where efficiency meets reliability, driving performance and productivity in your operations.
