Brand Name: | MINGO |
Model Number: | MG-550WS |
MOQ: | 1 |
Payment Terms: | L/C,T/T,Western Union,MoneyGram |
Water-Cooled Screw Chiller 550HP 550KW/Hr Cooling Capacity For Manufacturing Facilities

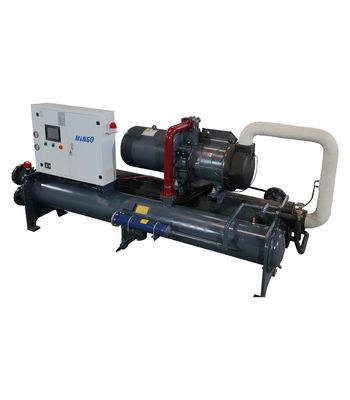

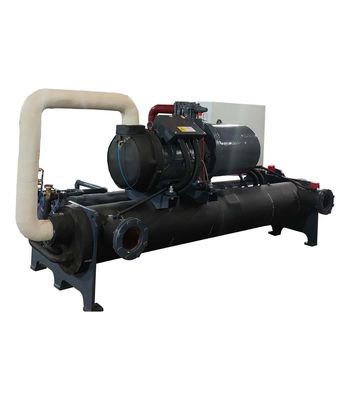

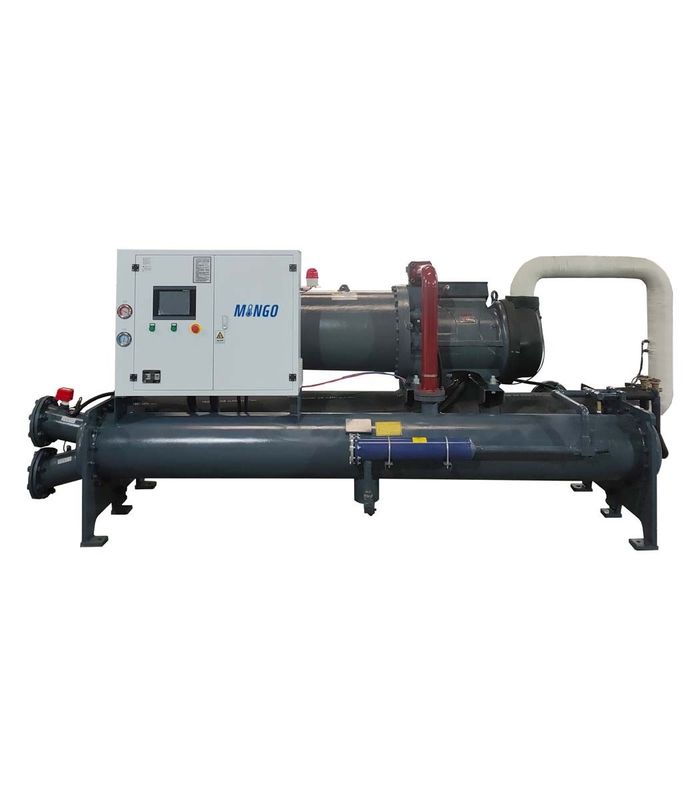

550HP Water-Cooled Screw Chiller
The 550HP Water-Cooled Screw Chiller is a powerful and efficient cooling solution engineered for large-scale industrial and commercial applications. Utilizing advanced Screw compressor technology, this chiller provides reliable performance and energy efficiency, making it ideal for sectors such as manufacturing, data centers, and large commercial HVAC systems.
Key Features:
Specification:
Voltage | 3/N/PE 380/220V 50Hz | ||
Cooling capacity | kW/hr | 550 | |
X1000 Kcal | 473 | ||
Compressor | power | kW | 118 |
Electric current | A | 198 | |
type | Semi-hermetic screw | ||
Refrigerant | type | R22, R404A, R407c, R134A | |
Condenser | type | Shell and tube | |
water flow | m³/h | 123.9 | |
Pipe dimension | G5" | ||
Evaporator | type | Shell and tube | |
water flow | m³/h | 95 | |
Pipe dimension | G5" | ||
Protection device | High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection | ||
Ambient temperature | ºC | 3-room |
Applications:
Benefits:
Enhance your industrial cooling capabilities with our 550HP Water-Cooled Screw Chiller—where high efficiency meets exceptional reliability, driving performance and productivity in your operations.
