Brand Name: | MINGO |
Model Number: | MG-310WS |
MOQ: | 1 |
Payment Terms: | L/C,T/T,Western Union,MoneyGram |
Water-Cooled Screw Chiller 310HP 280.5KW KW/Hr Cooling Capacity Water-Cooled Condenser

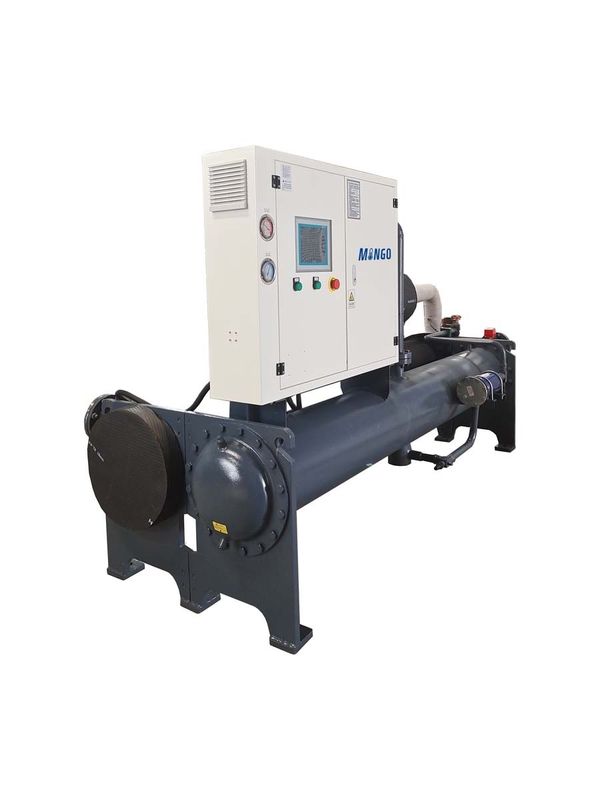

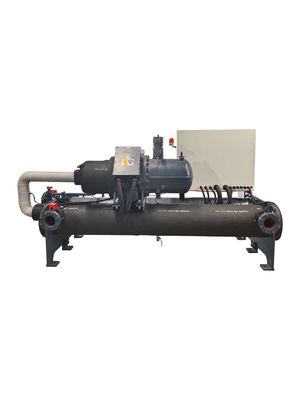

310HP Water-Cooled Screw Chiller
The 310HP Water-Cooled Screw Chiller is a high-capacity cooling solution engineered for large-scale industrial and commercial applications. Utilizing advanced Screw compressor technology, this chiller delivers exceptional performance, reliability, and energy efficiency, making it ideal for sectors such as manufacturing, data centers, and extensive HVAC systems.
Key Features:
Specification:
Voltage | 3/N/PE 380/220V 50Hz | ||
Cooling capacity | kW/hr | 280.6 | |
Kcal | 241316 | ||
Compressor | power | kW | 66.1 |
Electric current | A | 114.4 | |
type | Semi-hermetic screw | ||
Refrigerant | type | R22, R404A, R407c, R134A | |
Condenser | type | Shell and tube | |
water flow | m³/h | 75.8 | |
Pipe dimension | DN80 | ||
Evaporator | type | Shell and tube | |
water flow | m³/h | 52 | |
Pipe dimension | DN80 | ||
Protection device | High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection | ||
Ambient temperature | ºC | 3-room |
Applications:
Benefits:
Transform your cooling capabilities with our 310HP Water-Cooled Screw Chiller—where efficiency meets reliability, driving performance and productivity in your operations.
