Brand Name: | MINGO |
Model Number: | MG-260WS |
MOQ: | 1 |
Payment Terms: | L/C,T/T,Western Union,MoneyGram |

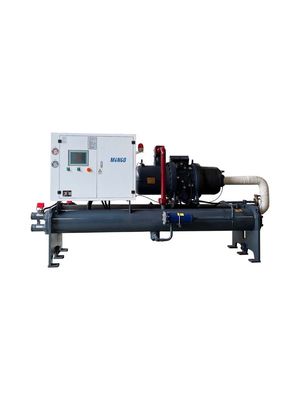

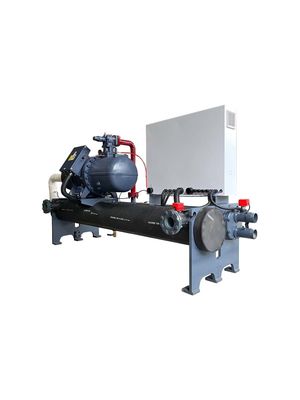

Water-Cooled Screw Chiller 260HP 260 Kw/Hr Cooling Capacity Shell And Tube Condenser
260HP Water-Cooled Screw Chiller
The 260HP Water-Cooled Screw Chiller is a high-performance cooling solution designed for large-scale industrial and commercial applications. With advanced Screw compressor technology, this chiller delivers exceptional efficiency and reliability, making it ideal for sectors such as manufacturing, data centers, and expansive HVAC systems.
Key Features:
Specification:
Voltage | 3/N/PE 380/220V 50Hz | ||
Cooling capacity | kW/hr | 260 | |
X1000 Kcal | 223.6 | ||
Compressor | power | kW | 56 |
Electric current | A | 95 | |
type | Semi-hermetic screw | ||
Refrigerant | type | R22, R404A, R407c, R134A | |
Condenser | type | Shell and tube | |
water flow | m³/h | 57.8 | |
Pipe dimension | G3" | ||
Evaporator | type | Shell and tube | |
water flow | m³/h | 43.9 | |
Pipe dimension | G3" | ||
Protection device | High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection | ||
Ambient temperature | ºC | 3-room |
Applications:
Benefits:
Elevate your cooling capabilities with our 260HP Water-Cooled Screw Chiller—where efficiency meets reliability, driving performance and productivity in your operations.
