Water Cooled Industrial Chiller
Created with Pixso.

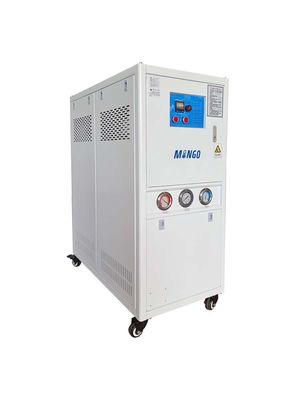

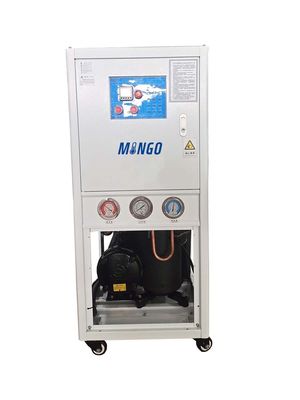

50HZ-60HZ Water Cooled Industrial Chiller 6HP 22.45KW/Hr Cooling Capacity

50HZ-60HZ Water Cooled Industrial Chiller 6HP 22.45KW/Hr Cooling Capacity

Brand Name: MINGO
Model Number: MG-06W
MOQ: 1
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
ISO CE
Name:
Water Cooled Industrial Chiller
Cooling Capacity:
50Hz-19.18KW/Hr 60Hz-22.45KW/Hr
Cooling Method:
Water-cooled
Voltage:
3Ph-380V/415V-50Hz/60Hz
Compressor Type:
Hermetic Scroll Type Or Piston
Compressor Power:
4.5KW
Condensator Type:
Copper Tube Shell
Condensator CMS:
4.13-4.83 M3/h
Pump Power:
0.75KW
Pump Lift:
23m
Dimension:
1200mm-610mm-1260mm (L-W-H)
Ambient Temperature:
3ºC-30ºC(can Be Customized)
Packaging Details:
Wooden box packaging
Highlight:

60HZ Water Cooled Industrial Chiller

,

50HZ Water Cooled Industrial Chiller

,

Water Cooled Industrial Chiller 6HP

Product Description



Water Cooled Industrial Chiller 6HP 60Hz-22.45KW/Hr Cooling Capacity 50-60hz



6HP Water-Cooled Industrial Chiller


The 6HP Water-Cooled Industrial Chiller is a compact and efficient cooling solution designed for small to medium-sized industrial applications. With its reliable performance and advanced features, this chiller is ideal for a variety of sectors including manufacturing, food processing, and HVAC systems.



Key Features:

  • Effective Cooling Capacity: Delivers robust cooling performance, effectively managing thermal loads to ensure optimal operating conditions in various applications.
  • Energy-Efficient Design: Engineered to minimize energy consumption while maximizing cooling output, resulting in lower operating costs.
  • Durable Construction: Built with high-quality materials to withstand industrial environments, ensuring long-lasting reliability and minimal maintenance.
  • User-Friendly Control System: Features an intuitive digital control panel for easy monitoring and precise temperature adjustments, enhancing operational efficiency.
  • Quiet Operation: Designed for low noise levels, making it suitable for environments where sound control is important.
  • Eco-Friendly Refrigerant: Utilizes environmentally safe refrigerants that comply with industry regulations, contributing to reduced environmental impact.



Specification:





Voltage 3/N/PE 380/220V 50Hz
Cooling capacity kW/h 50HZ-19.18 60HZ-22.45
Kcal 50HZ-16503 60HZ-19308
Compressor power kW 4.50
type Hermetic scroll type or piston
Refrigerant type R22, R404A, R407c, R134A
Condenser type Efficient copper tube shell and tube type
water flow m³/h 4.13-4.83
Pipe dimension G1"
Evaporator water solubility 0.058
water flow m³/h 3.30-3.86
Pipe dimension G1"
Pump Power KW 0.75
Lift m 23
Protection device High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection
Ambient temperature ºC 3-room





Applications:



  • Manufacturing Processes: Ideal for cooling machinery and maintaining optimal production conditions to enhance efficiency.
  • Food and Beverage Processing: Ensures proper cooling during processing and storage, adhering to safety and quality standards.
  • HVAC Systems: Supports effective cooling in smaller commercial buildings, improving occupant comfort and energy efficiency.
  • Laboratories: Provides consistent cooling for sensitive equipment and processes, ensuring reliable results.



Benefits:



  • Enhanced Reliability: Designed for continuous operation, reducing the risk of downtime and improving overall productivity.
  • Cost-Effective Operation: Energy-efficient performance translates to significant savings on utility bills, while durable construction minimizes maintenance needs.
  • Improved Product Quality: Consistent temperature control ensures high-quality outputs, reducing defects and enhancing customer satisfaction.
  • Sustainability Focus: The use of eco-friendly refrigerants supports corporate responsibility initiatives, helping businesses meet their environmental goals.



Optimize your industrial cooling solutions with our 6HP Water-Cooled Industrial Chiller—where efficiency meets reliability, driving performance and productivity in your operations.
