Water Cooled Industrial Chiller
Created with Pixso.

Energy Efficient Industrial Water Cooler Machine 3HP 9.59KW/Hr With Dial Display

Energy Efficient Industrial Water Cooler Machine 3HP 9.59KW/Hr With Dial Display

Brand Name: MINGO
Model Number: MG-03W
MOQ: 1
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
ISO CE
Name:
Industrial Water Cooler Machine
Cooling Capacity:
50HZ-9.59KW/Hr 60HZ-11.22KW/Hr
Cooling Method:
Water-cooled
Voltage:
3Ph-380V/415V-50Hz/60Hz
Compressor Type:
Hermetic Scroll Type Or Piston
Compressor Power:
2.2KW
Condenser Type:
Copper Tube Shell
Condenser CMS:
2.06-2.41 M3/h
Pipe Diameter:
G3/4''
Pump Power:
0.375KW
Pump Lift:
22m
Dimension:
850mm-480mm-980mm (L-W-H)
Ambient Temperature:
3ºC-43ºC(can Be Customized)
Packaging Details:
Wooden box packaging
Highlight:

Industrial Water Cooler Machine 3HP

,

Industrial Water Cooler Machine 9.59KW/Hr

,

Energy Efficient Industrial Water Cooler Machine

Product Description

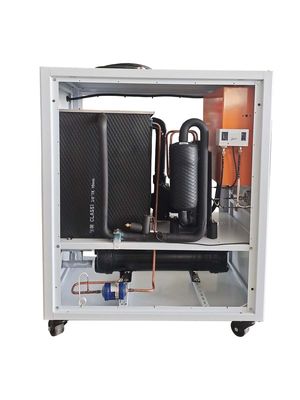

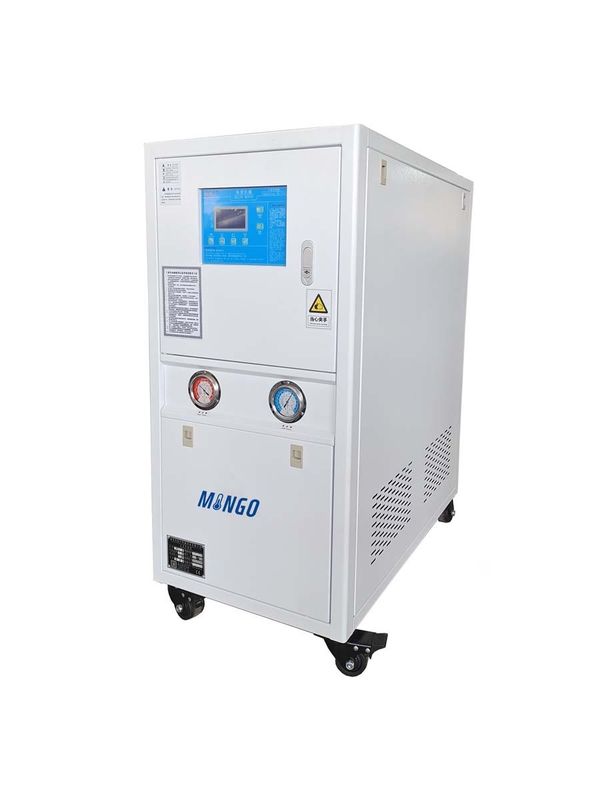

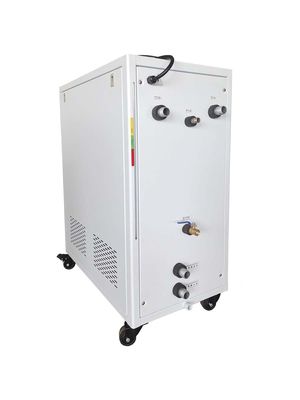

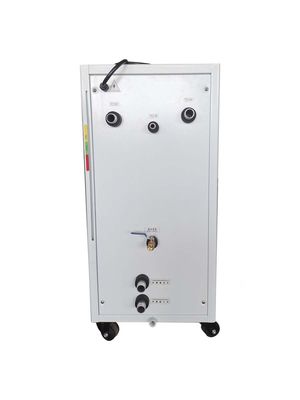

Water Cooled Industrial Chiller 3HP 9.59KW/Hr Cooling Capacity Dial Display



3HP Water-Cooled Industrial Chiller


The 3HP Water-Cooled Industrial Chiller is a compact and efficient cooling solution designed for small industrial applications. This chiller offers reliable performance and precise temperature control, making it ideal for sectors such as manufacturing, laboratories, and HVAC systems.



Key Features:



  • Compact Cooling Capacity: Provides effective cooling performance for small to medium thermal loads, ensuring optimal operational conditions.
  • Energy-Efficient Design: Engineered to minimize energy consumption while delivering maximum cooling output, resulting in cost savings on utilities.
  • Durable Construction: Built with high-quality materials to withstand industrial environments, ensuring longevity and reduced maintenance needs.
  • User-Friendly Control System: Features an intuitive digital control panel for easy monitoring and precise temperature adjustments, enhancing operational efficiency.
  • Quiet Operation: Designed for low noise levels, making it suitable for environments where sound control is essential.
  • Eco-Friendly Refrigerant: Utilizes environmentally safe refrigerants that comply with industry regulations, reducing overall environmental impact.



Specification:





Voltage 3/N/PE 380/220V 50Hz
Cooling capacity kW/h 50HZ-9.59 60HZ-11.22
Kcal 50HZ-8251 60HZ-9654
Compressor power kW 2.20
type Hermetic scroll type or piston
Refrigerant type R22, R404A, R407c, R134A
Condenser type Efficient copper tube shell and tube type
water flow m³/h 2.06-2.41
Pipe dimension G3/4"
Evaporator water solubility 0.050
water flow m³/h 1.63-1.93
Pipe dimension G3/4"
Pump Power KW 0.375
Lift m 22
Protection device High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection
Ambient temperature ºC 3-room







Applications:



  • Manufacturing Processes: Ideal for cooling machinery and maintaining consistent operating conditions, enhancing productivity.
  • Laboratories: Provides reliable cooling for sensitive equipment and processes, ensuring accurate results.
  • Food Processing: Supports proper cooling during small-scale food production and storage, adhering to safety standards.
  • HVAC Systems: Enhances cooling efficiency in smaller commercial spaces, improving occupant comfort.



Benefits:



  • Enhanced Reliability: Designed for continuous operation, minimizing downtime and improving overall productivity.
  • Cost-Effective Operation: Energy-efficient performance leads to lower utility bills, while durable construction reduces maintenance expenses.
  • Improved Product Quality: Consistent temperature management ensures high-quality outputs, reducing defects and enhancing customer satisfaction.
  • Sustainability Commitment: The use of eco-friendly refrigerants supports corporate sustainability initiatives, helping businesses achieve their environmental goals.







Upgrade your cooling capabilities with our 3HP Water-Cooled Industrial Chiller—where efficiency meets reliability, driving performance in your operations.
