Water Cooled Industrial Chiller
Created with Pixso.

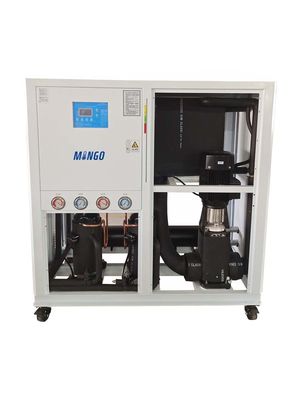

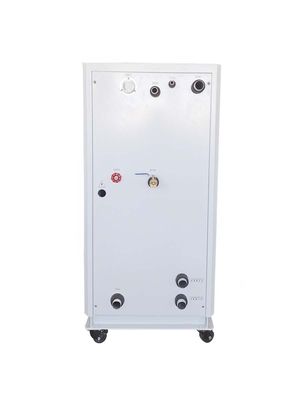

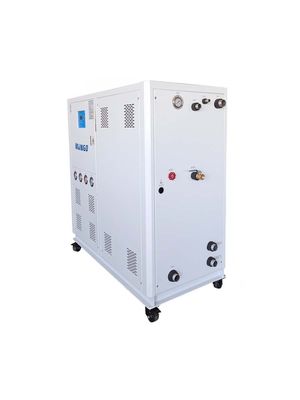

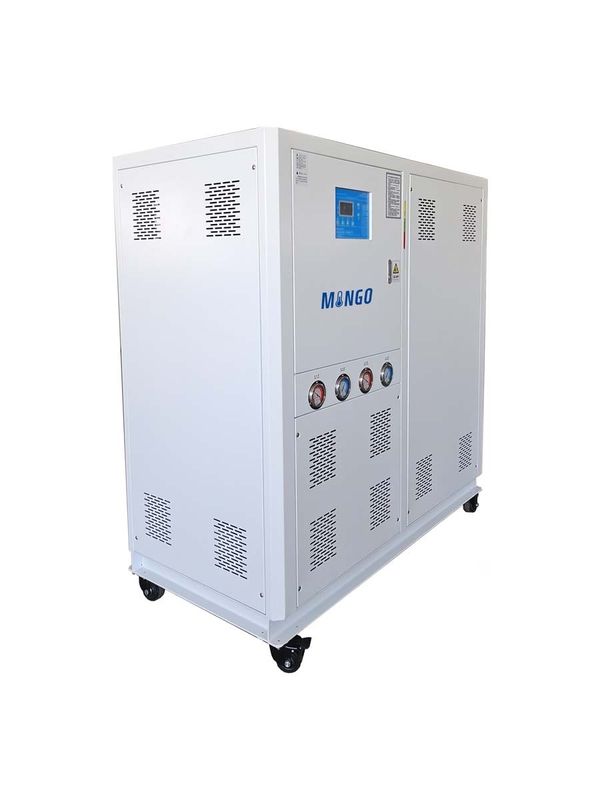

Durable Industrial Water Cooled Chiller 10HP 37.24KW/Hr Precise Temperature Control

Durable Industrial Water Cooled Chiller 10HP 37.24KW/Hr Precise Temperature Control

Brand Name: MINGO
Model Number: MG-10WD
MOQ: 1
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
ISO CE
Name:
Industrial Water Cooled Chiller
Cooling Capacity:
50HZ-31.83KW/Hr 60HZ-37.24KW/Hr
Cooling Method:
Water-Cooled
Voltage:
3Ph-380V/415V-50Hz/60Hz
Compressor Type:
Hermetic Scroll Type Or Piston
Compressor Power:
7.5KW
Condenser Type:
Copper Tube Shell
Condenser CMS:
6.85-8.01 M3/h
Pipe Diameter:
G1-1/2''
Pump Power:
1.5KW
Pump Lift:
21.5m
Dimension:
1200mm-610mm-1260mm (L-W-H)
Ambient Temperature:
3ºC-43ºC(can Be Customized)
Packaging Details:
Wooden box packaging
Highlight:

Industrial Water Cooled Chiller 37.24KW/Hr

,

Industrial Water Cooled Chiller 10HP

,

10HP Chiller

Product Description

Water Cooled Industrial Chiller 10HP 37.24KW/Hr Cooling Capacity Precise Temperature Control



10HP Water-Cooled Industrial Chiller


The 10HP Water-Cooled Industrial Chiller is a powerful and efficient cooling solution designed for small to medium-sized industrial applications. With its advanced features and reliable performance, this chiller is ideal for various sectors, including manufacturing, food processing, and HVAC systems.



Key Features:



  • High Cooling Capacity: Provides effective cooling performance to manage substantial thermal loads, ensuring optimal operational conditions.
  • Energy-Efficient Design: Engineered to minimize energy consumption while maximizing cooling output, leading to significant cost savings on utilities.
  • Durable Construction: Built with high-quality materials designed to withstand demanding industrial environments, ensuring longevity and reduced maintenance needs.
  • Intuitive Control System: Features a user-friendly digital control panel for easy monitoring and precise temperature adjustments, enhancing operational efficiency.
  • Low Noise Operation: Designed for quiet performance, making it suitable for environments where sound levels need to be controlled.
  • Eco-Friendly Refrigerant: Utilizes environmentally safe refrigerants compliant with international standards, helping to reduce overall environmental impact.



Specification:



Voltage 3/N/PE 380/220V 50Hz
Cooling capacity kW/h 50HZ-31.83 60HZ-37.24
Kcal 50HZ-27370 60HZ-32023
Compressor power kW 7.50
type Hermetic scroll type or piston
Refrigerant type R22, R404A, R407c, R134A
Condenser type Efficient copper tube shell and tube type
water flow m³/h 6.85-8.01
Pipe dimension G1-1/2"
Evaporator water solubility 0.150
water flow m³/h 5.47-6.40
Pipe dimension G1-1/2"
Pump Power KW 1.5
Lift m 21.5
Protection device High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection
Ambient temperature ºC 3-room







Applications:



  • Manufacturing Processes: Ideal for cooling machinery and maintaining consistent operating conditions, boosting productivity and efficiency.
  • Food and Beverage Processing: Ensures proper temperature control during processing and storage, adhering to safety and quality standards.
  • Plastic Injection Molding: Provides reliable cooling for molds, improving cycle times and product quality.
  • HVAC Systems: Supports effective cooling in commercial buildings, enhancing occupant comfort and energy savings.



Benefits:



  • Increased Reliability: Designed for continuous operation, minimizing downtime and improving overall productivity.
  • Cost-Effective Operation: Energy-efficient performance leads to lower operational costs, while durable construction minimizes maintenance expenses.
  • Improved Product Quality: Consistent temperature management ensures high-quality outputs, reducing defects and enhancing customer satisfaction.
  • Sustainability Commitment: Compliance with eco-friendly standards supports corporate sustainability initiatives, helping businesses meet their environmental goals.





Enhance your industrial cooling capabilities with our 10HP Water-Cooled Industrial Chiller—where efficiency meets reliability, driving performance and productivity in your operations.
