Water Cooled Industrial Chiller
Created with Pixso.

20HP 67.14KW/Hr Water Cooled Industrial Chiller For Food Processing

20HP 67.14KW/Hr Water Cooled Industrial Chiller For Food Processing

Brand Name: MINGO
Model Number: MG-20WD
MOQ: 1
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
ISO CE
Name:
Water Cooled Industrial Chiller
Cooling Capacity:
50HZ-67.14KW/Hr 60HZ-78.55KW/Hr
Cooling Method:
Water-cooled
Voltage:
3Ph-380V/415V-50Hz/60Hz
Compressor Type:
Hermetic Scroll Type Or Piston
Compressor Power:
15KW
Condenser Type:
Copper Tube Shell
Condenser CMS:
14.44-16.90 M3/h
Pipe Diameter:
G2''
Pump Power:
2.2KW
Pump Lift:
22m
Dimension:
1750mm-760mm-1500mm (L-W-H)
Ambient Temperature:
3ºC-43ºC(can Be Customized)
Packaging Details:
Wooden box packaging
Highlight:

20HP Water Cooled Industrial Chiller

,

67.14KW/Hr Water Cooled Industrial Chiller

,

Food Processing Water Cooled Industrial Chiller

Product Description

Water Cooled Industrial Chiller 20HP 67.14KW/Hr Cooling Capacity Lower Operating Costs

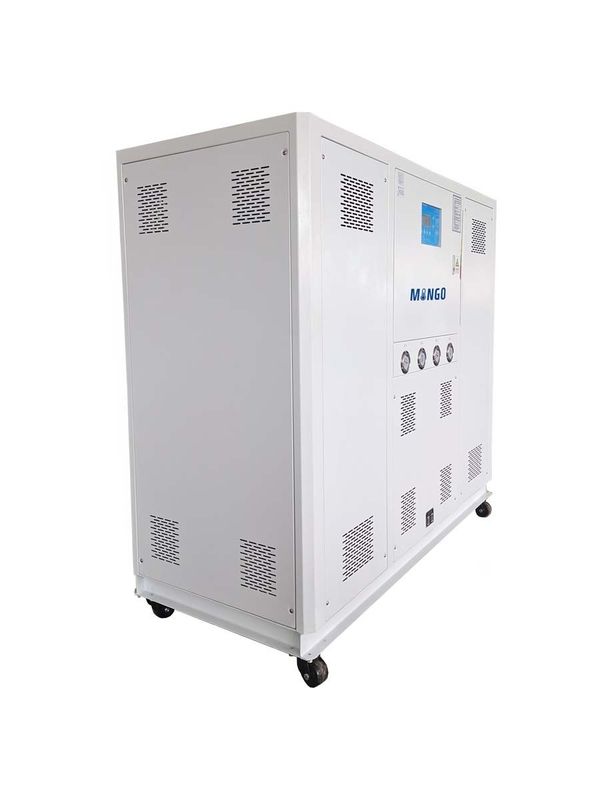

20HP Water-Cooled Industrial Chiller


The 20HP Water-Cooled Industrial Chiller is a robust and efficient cooling solution designed for medium to large-scale industrial applications. With its advanced technology and reliable performance, this chiller is ideal for various sectors, including manufacturing, food processing, and HVAC systems.



Key Features:



  • High Cooling Capacity: Delivers exceptional cooling performance to effectively manage substantial thermal loads, ensuring optimal operating conditions.
  • Energy-Efficient Design: Optimized to minimize energy consumption while maximizing cooling output, resulting in significant savings on utility costs.
  • Durable Construction: Constructed with high-quality materials to withstand demanding industrial environments, ensuring long-lasting reliability and low maintenance.
  • Advanced Control System: Features an intuitive digital control panel for real-time monitoring and precise temperature adjustments, enhancing operational efficiency.
  • Quiet Operation: Engineered for low noise levels, making it suitable for environments where sound control is important.
  • Eco-Friendly Refrigerant: Utilizes environmentally safe refrigerants that comply with international regulations, helping to reduce overall environmental impact.



Specification:





Voltage 3/N/PE 380/220V 50Hz
Cooling capacity kW/h 50HZ-67.14 60HZ-78.56
Kcal 50HZ-57748 60HZ-67565
Compressor power kW 15.00
type Hermetic scroll type or piston
Refrigerant type R22, R404A, R407c, R134A
Condenser type Efficient copper tube shell and tube type
water flow m³/h 14.44-16.90
Pipe dimension G2"
Evaporator water solubility 0.300
water flow m³/h 11.55-13.52
Pipe dimension G2"
Pump Power KW 2.2
Lift m 22
Protection device High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection
Ambient temperature ºC 3-room





Applications:



  • Manufacturing Processes: Ideal for maintaining consistent cooling for machinery and production processes, enhancing overall efficiency.
  • Food and Beverage Processing: Ensures proper cooling during processing and storage, adhering to safety and quality standards.
  • Plastic Injection Molding: Provides reliable cooling for molds, improving cycle times and product quality.
  • HVAC Systems: Enhances cooling efficiency in commercial and industrial buildings, contributing to energy savings and improved occupant comfort.



Benefits:



  • Enhanced Reliability: Designed for continuous operation, minimizing the risk of downtime and boosting overall productivity.
  • Cost-Effective Operation: Energy-efficient performance translates to lower operational costs, while durable construction minimizes maintenance expenses.
  • Improved Product Quality: Consistent temperature management ensures high-quality outputs, reducing defects and enhancing customer satisfaction.
  • Sustainability Focus: Compliance with eco-friendly standards supports corporate sustainability initiatives, helping businesses meet their environmental goals.



Optimize your industrial cooling capabilities with our 20HP Water-Cooled Industrial Chiller—where efficiency meets reliability, driving performance and productivity in your operations.
