Brand Name: | MINGO |
Model Number: | MG-01LC |
MOQ: | 1 |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |

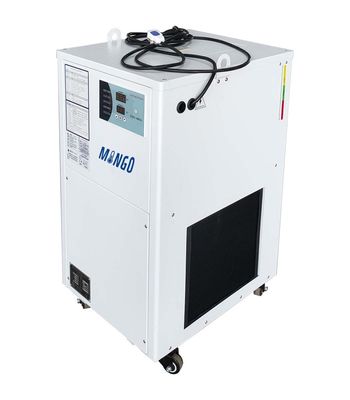

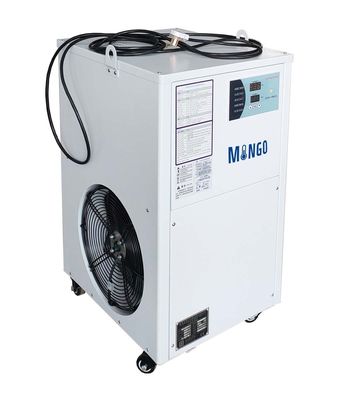

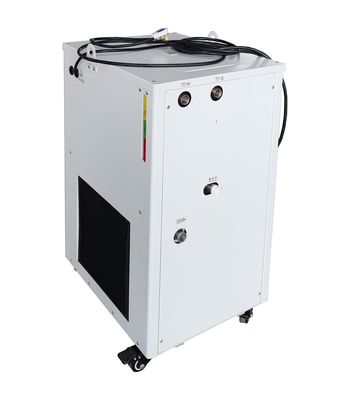

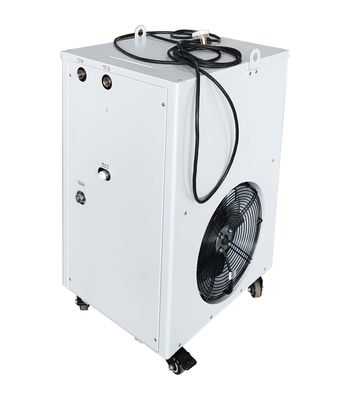

1HP Laser Chiller
The 1HP Laser Chiller is a compact and efficient cooling solution designed to maintain optimal temperatures for small to medium laser systems. This reliable unit ensures precise thermal management, enhancing the performance and longevity of laser equipment in various applications.
Key Features:
Specification:
Voltage | 1/N/PE 220V 50/60Hz | ||||
Cooling capacity | kW/h | 50HZ-2.94 60HZ-3.44 | |||
Kcal | 50HZ-2528 60HZ-2958 | ||||
Compressor | power | kW | 0.75 | ||
type | Hermetic scroll type or piston | ||||
Refrigerant | type | R22, R404A, R407c, R134A | |||
Condenser | type | Efficient brass sets of corrugated aluminum fin | |||
Fan | air volume | m³/h | 1000 | ||
Evaporator | type | Immersion/plate/shell and tube High-Efficiency Heat Exchangers | |||
water flow | m³/h | 0.51 | |||
Pipe dimension | G1/2" | ||||
Pump | Power | KW | 0.375 | ||
Lift | m | 24 | |||
Protection device | High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection | ||||
Ambient temperature | ºC | 3-room (adjustable) |
Applications:
Benefits:
Choose the 1HP Laser Chiller for an efficient cooling solution that enhances the performance and reliability of your laser systems. Experience the advantages of effective thermal management in your applications with this essential unit!
