Brand Name: | MINGO |
Model Number: | MG-02LC |
MOQ: | 1 |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Laser Chiller 2HP 5701 Kcal/Hr Cooling Capacity Antifreeze Protection Space-Saving Design

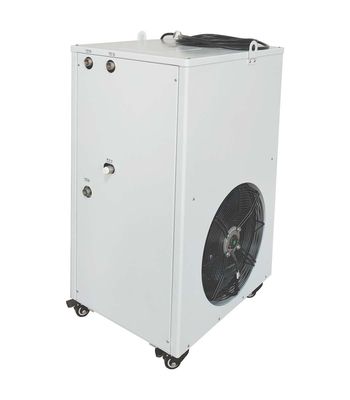

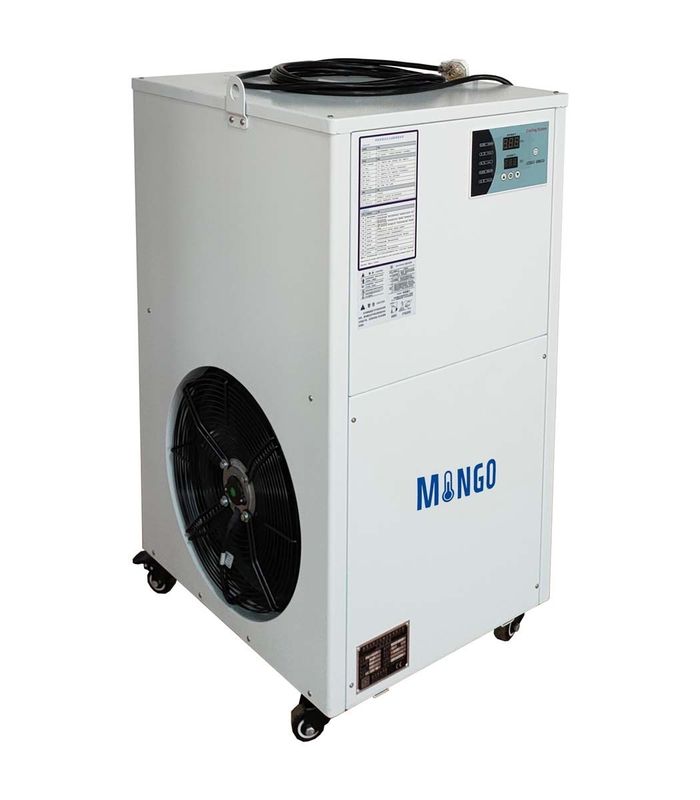

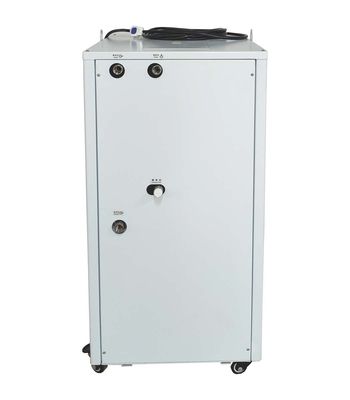

2HP Laser Chiller
The 2HP Laser Chiller is a compact and efficient cooling solution designed to maintain optimal temperatures for laser systems. Engineered for reliable thermal management, this unit enhances the performance and longevity of laser equipment across various applications.
Key Features:
Specification:
Voltage | 3/N/PE 380/220V 50Hz | ||||
Cooling capacity | kW/h | 50HZ-5.67 60HZ-6.63 | |||
Kcal | 50HZ-4872 60HZ-5701 | ||||
Compressor | power | kW | 1.50 | ||
type | Hermetic scroll type or piston | ||||
Refrigerant | type | R22, R404A, R407c, R134A | |||
Condenser | type | Efficient brass sets of corrugated aluminum fin | |||
Fan | air volume | m³/h | 2000 | ||
Evaporator | type | Immersion/plate / shell and tube High-Efficiency Heat Exchangers | |||
water flow | m³/h | 0.97 | |||
Pipe dimension | G1/2" | ||||
Pump | Power | KW | 0.375 | ||
Lift | m | 24 | |||
Protection device | High pressure protection, low pressure protection, overload protection, antifreeze protection, flow protection | ||||
Ambient temperature | ºC | 3-room |
Applications:
Benefits:
Choose the 2HP Laser Chiller for an efficient cooling solution that enhances the performance and reliability of your laser systems. Experience the advantages of effective thermal management with this essential unit!
