| Brand Name: | MINGO |
| Model Number: | MG-150AS |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram |
Air-Cooled Screw Chiller 150HP 150KW Cooling Capacity 12pcs Fans aluminum fin Compact and Easy to Install

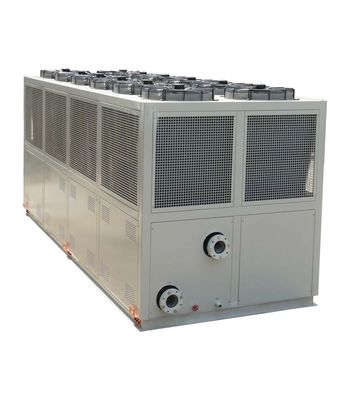

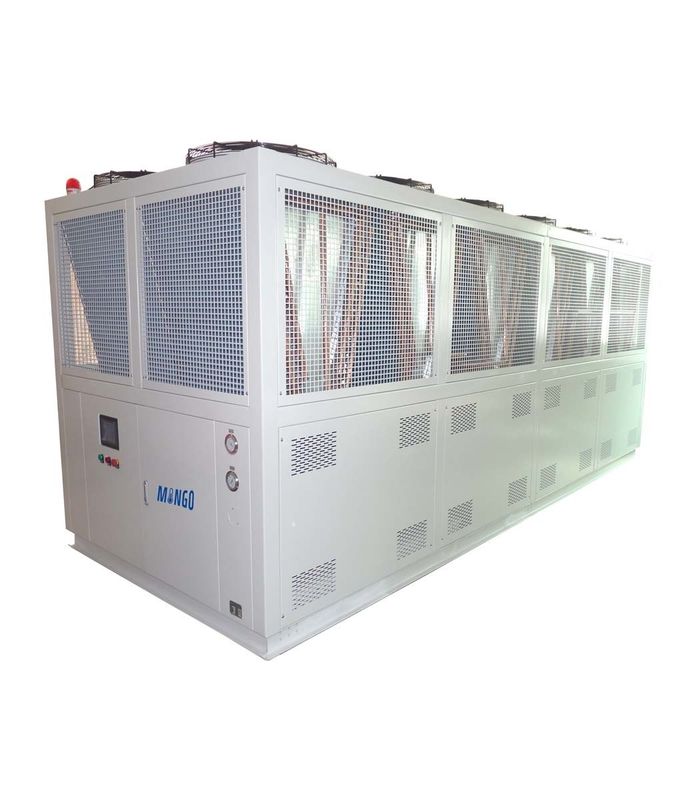

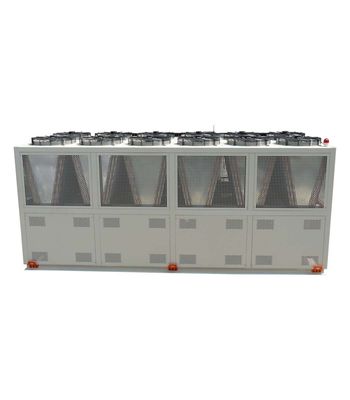

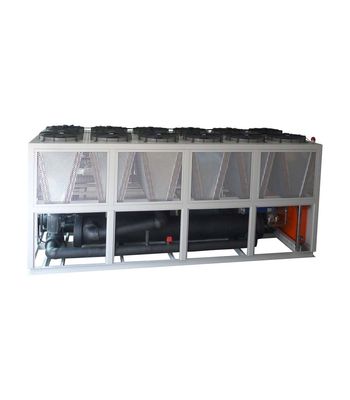

150HP Air-Cooled Screw Chiller
The 150HP Air-Cooled Screw Chiller is a high-capacity cooling solution designed for large-scale industrial and commercial applications. Combining advanced Screw compressor technology with energy-efficient performance, this chiller provides reliable cooling for a variety of sectors, including manufacturing, data centers, and commercial HVAC systems.
Key Features:
Specification:
| Voltage | 3/N/PE 380/220V 50Hz | ||
| Cooling capacity | kW/hr | 150 | |
| X1000 Kcal | 129 | ||
| Compressor | power | kW | 51 |
| type | Semi-hermetic screw | ||
| Refrigerant | type | R22, R404A, R407c, R134A | |
| Condenser | type | Efficient brass sets of corrugated aluminum fin | |
| Fan | power | KW | 4.7 |
| air volume | m³/h | 60000 | |
| Evaporator | type | Immersion / plate / shell and tube High-Efficiency Heat Exchangers | |
| water flow | m³/h | 25.8 | |
| Pipe dimension | G2.5" | ||
| Pump | Power | KW | 3.0 |
| Protection device | High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection | ||
| Ambient temperature | ºC | 3-room | |
Applications:
Benefits:
Elevate your cooling solutions with our 150HP Air-Cooled Screw Chiller—where efficiency meets reliability, driving performance and productivity in your operations.
