36HP HVAC Air Cooled Chiller Manufacturers Integrated Safety

Brand Name:	MINGO
Model Number:	MG-36AD
MOQ:	1
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE

Cooling Capacity:

104KW/h

Cooling Method:

Air-cooled

Voltage:

3Ph-380V/415V-50Hz/60Hz

Refrigerant:

R22, R404A, R407c, R134A

Compressor Type:

Hermetic Scroll Type Or Piston

Compressor Power:

27KW

Fan CMS:

40000m³/s

Condensator:

Brass Sets Corrugated Aluminum Fin

Pump:

4KW

Pump Lift:

25m

Ambient Temperature:

Customize

Dimension:

1900mm-1500mm-1700mm (L-W-H)

Name:

Air Cooled Industrial Chiller

Packaging Details:

Wooden box packaging

Highlight:

36HP HVAC Air Cooled Chiller

HVAC Air Cooled Chiller Manufacturers

36HP HVAC Air Chiller Manufacturer

Product Description

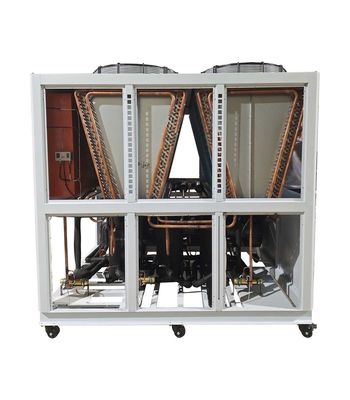

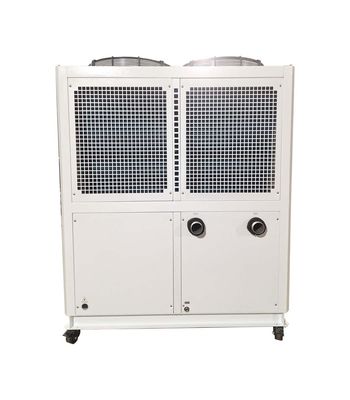

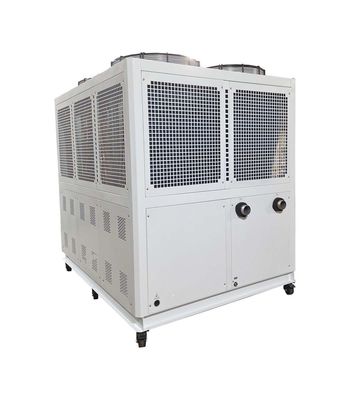

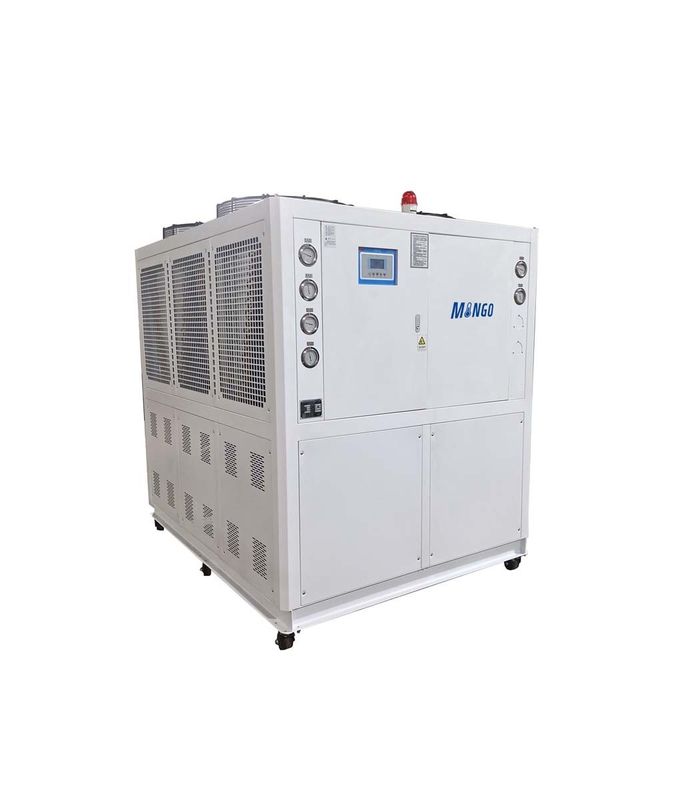

36HP Air-Cooled Industrial Chiller

Elevate your industrial cooling capabilities with our **36HP Air-Cooled Industrial Chiller**. This powerful and efficient cooling solution is designed to meet the rigorous demands of various industrial applications, providing reliable temperature control to enhance productivity and protect your equipment.

Key Features:

High Cooling Capacity: 36 horsepower compressor delivers rapid and efficient cooling.
Energy Efficient Design: Optimized for low energy consumption, reducing operational costs.
Durable Construction: Built with robust materials to withstand harsh industrial environments.
User-Friendly Digital Control Panel**: Simple monitoring and adjustments for precise temperature settings.
Quiet Operation: Designed for minimal noise, making it ideal for noise-sensitive environments.
Integrated Safety Features: Equipped with alarms and safety shut-off systems to protect equipment.

Specification

Voltage					3/N/PE 380/220V 50Hz
Cooling capacity				kW/h	104
				Kcal	89780
Compressor	power			kW	9*3
	type				Hermetic scroll type or piston
Refrigerant	type				R22, R404A, R407c, R134A
Condenser	type				Efficient brass sets corrugated aluminum fin
Fan	power			KW	3.1
	air volume			m³/h	40000
Evaporator	type				immersion / plate / shell and tube High Efficiency Heat Exchangers
	water flow			m³/h	18.6
	Pipe dimension				G3’’
Pump	Power	KW			4
	Lift		m		25
Protection device					High pressure protection, low pressure protection, overload protection, antifreeze protection, flow protection
Ambient temperature				ºC	3-room

Applications:

Manufacturing: Ensures consistent cooling for machinery and production processes.
Plastics: Maintains optimal temperatures for injection molding and extrusion processes.
Pharmaceuticals: Provides precise temperature control for sensitive manufacturing processes.
Food Processing: Essential for maintaining product quality and safety during processing.
HVAC Systems: Can be integrated into larger heating and cooling systems for enhanced efficiency.

Benefits:

Increased Efficiency: Maintains optimal operating temperatures, reducing equipment strain and preventing overheating.
Cost Savings: Energy-efficient operation lowers utility bills, contributing to long-term savings.
Extended Equipment Lifespan: Protects machinery from temperature-related damage, prolonging service life.
Improved Product Quality: Consistent cooling ensures quality control in manufacturing processes.
Flexibility: Suitable for a wide range of applications, making it a versatile addition to your facility.

Invest in our 36HP Air-Cooled Industrial Chiller to optimize your operations, enhance productivity, and ensure reliable cooling performance in any industrial setting!
