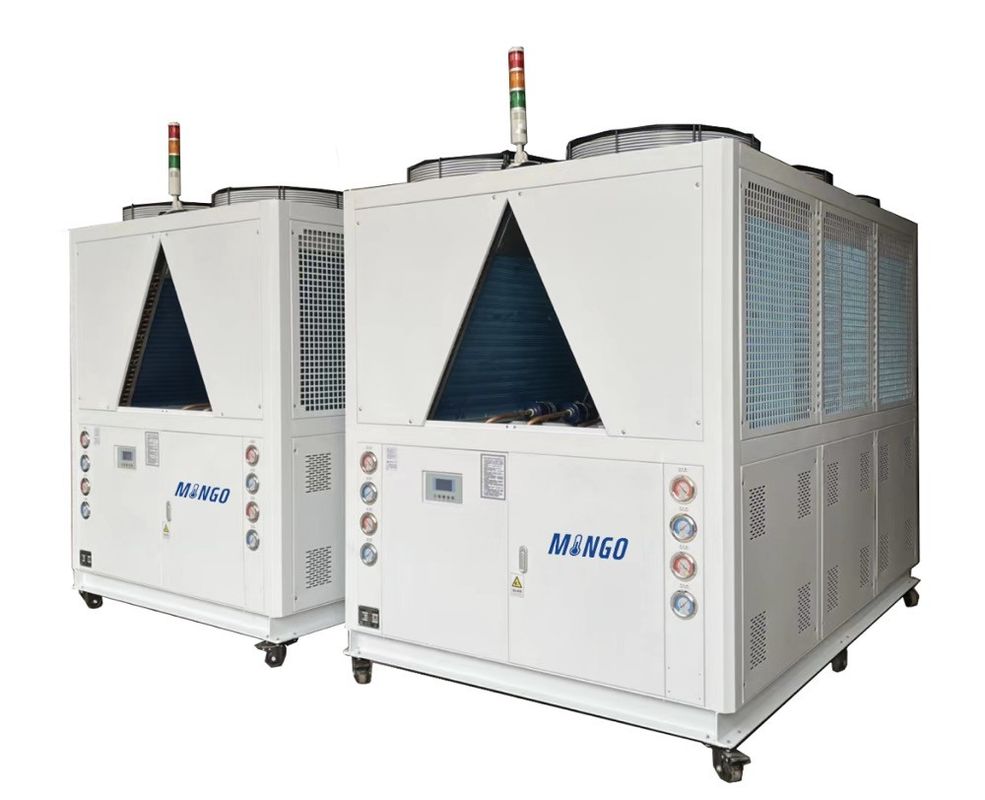

MINGO Air Cooled Industrial Chiller Manufacturers 75HP 184470Kcal/Hr

MINGO Air Cooled Industrial Chiller Manufacturers 75HP 184470Kcal/Hr

Brand Name: MINGO
Model Number: MG-75AD
MOQ: 1
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
ISO CE
Cooling Capacity:
50HZ-214.5KW/Hr
Input Power:
76.2KW
Cooling Method:
Air-cooled
Voltage:
3Ph-380V/415V-50Hz/60Hz
Water Pump:
4KW
Pump Lift:
42m
Refrigerant:
R22, R404A, R407c, R134A
Fan CMS:
80000m³/s
Condensator:
Brass Sets Corrugated Aluminum Fin
Compressor Type:
Hermetic Scroll Type Or Piston
Dimension:
3350mm-1700mm-2050mm (L-W-H)
Ambient Temperature:
Customize
Name:
Air Cooled Industrial Chiller
Packaging Details:
Wooden box packaging
Highlight:

Air Cooled Industrial Chiller 184470Kcal/Hr

,

Air Cooled Industrial Chiller 75HP

,

Air Cooled Industrial Chiller Manufacturers

Product Description

Air Cooled Industrial Chiller 75HP 184470Kcal/Hr Cooling Capacity Safety Alarm Big Size



75HP Air-Cooled Industrial Chiller


The 75HP Air-Cooled Industrial Chiller is a powerful and efficient cooling solution designed for demanding industrial applications. With its advanced technology and robust construction, this chiller is perfect for large-scale operations that require precise temperature control to optimize performance and productivity across various sectors.



Key Features:



  • High Cooling Capacity: Delivers exceptional cooling performance, making it suitable for extensive applications in manufacturing, process cooling, and large HVAC systems.
  • Energy-Efficient Design: Incorporates state-of-the-art compressors and high-efficiency heat exchangers to reduce energy consumption while maximizing cooling output.
  • Durable and Reliable: Constructed with high-quality materials to withstand the rigors of industrial environments, ensuring long-term reliability and reduced maintenance needs.
  • Advanced Control System: Features a sophisticated digital control panel for easy monitoring and adjustment, allowing for precise temperature management and remote diagnostics.
  • Low Noise Operation: Engineered for quiet performance, making it suitable for noise-sensitive environments without compromising efficiency.
  • Eco-Friendly Refrigerant: Utilizes refrigerants that comply with environmental regulations, reducing the overall carbon footprint and promoting sustainability.



Specification:



Voltage 3/N/PE 380/220V 50/60Hz
Cooling capacity kW/h 210
Kcal 180600
Compressor power kW 11*5
type Hermetic scroll type or piston
Refrigerant type R22, R404A, R407c, R134A
Condenser type Efficient brass sets of corrugated aluminum fin
Fan power KW 6.2
air volume m³/h 80000
Evaporator type Immersion/plate / shell and tube High-Efficiency Heat Exchangers
water flow m³/h 36.2
Pipe dimension 80mm
Pump 水泵 Power KW 42
Lift m 21
Protection device High-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection
Ambient temperature ºC 3-room







Applications:



  • Plastic Injection Molding: Provides efficient cooling for molds, significantly improving cycle times and product quality.
  • Food and Beverage Processing: Maintains optimal temperatures throughout processing and storage, ensuring safety and quality standards are met.
  • HVAC Systems: Enhances cooling efficiency in large commercial and industrial facilities, improving energy savings and occupant comfort.
  • Chemical Processing: Supports temperature-sensitive chemical reactions and processes, ensuring stability and safety.



Benefits:



  • Maximized Productivity: Consistent and reliable cooling enables smoother operations, reducing downtime and increasing overall output.
  • Cost Savings: The energy-efficient design leads to significant savings on electricity bills, while durable construction minimizes repair and replacement costs.
  • Quality Assurance: Stable temperature control ensures higher product quality and reduces defects, contributing to improved customer satisfaction.
  • Environmental Responsibility: Compliance with eco-friendly standards supports corporate sustainability initiatives, helping businesses meet their environmental goals.





Transform your industrial cooling operations with our 75HP Air-Cooled Industrial Chiller—where superior performance meets reliability for unmatched efficiency and productivity.
