Air Cooled Industrial Chiller
Created with Pixso.

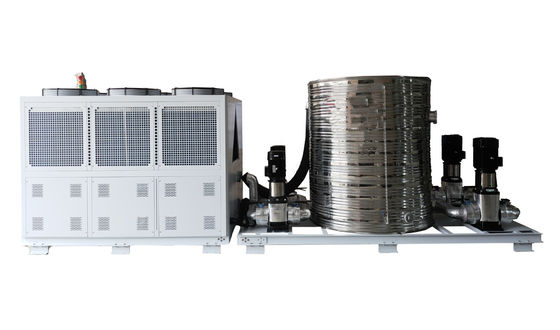

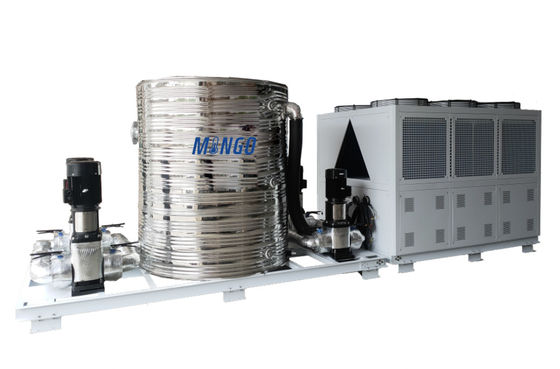

Durable Air Cooled Industrial Chiller 40HP 113.58 KW/Hr With Water Tower / 6 Pcs Fans

Durable Air Cooled Industrial Chiller 40HP 113.58 KW/Hr With Water Tower / 6 Pcs Fans

Brand Name: MINGO
Model Number: MG-40AD
MOQ: 1
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
ISO CE
Name:
Air Cooled Industrial Chiller
Cooling Capacity:
50HZ-113.58KW/Hr 60HZ-132.89KW/Hr
Input Power:
37.10KW
Cooling Method:
Air-cooled
Voltage:
3Ph-380V/415V-50Hz/60Hz
Water Pump:
4.0KW
Pump Lift:
25m
Refrigerant:
R22, R404A, R407c, R134A
Fan CMS:
40000m³/s
Condensator:
Brass Sets Corrugated Aluminum Fin
Compressor Type:
Hermetic Scroll Type Or Piston
Dimension:
1900mm-1500mm-1700mm (L-W-H)
Ambient Temperature:
Customize
Packaging Details:
Wooden box packaging
Highlight:

Durable Air Cooled Industrial Chiller

,

Air Cooled Industrial Chiller 40HP

,

Industrial Air Cooled Water Chiller

Product Description

Air Cooled Industrial Chiller 40HP 113.58 KW/Hr Cooling Capacity Water Tower 6 Pcs Fans



40HP Air-Cooled Industrial Chiller


The 40HP Air-Cooled Industrial Chiller is a high-capacity cooling solution designed for demanding industrial environments. Combining robust engineering with advanced technology, this chiller provides reliable and efficient temperature control, making it ideal for a wide range of applications in manufacturing, process cooling, and HVAC systems.



Key Features:



  • High Cooling Capacity: Offers substantial cooling performance, suitable for large-scale operations that require consistent thermal management.
  • Energy-Efficient Operation: Features state-of-the-art compressors and optimized heat exchangers to reduce energy consumption while delivering maximum cooling output.
  • Durable Design: Constructed with high-quality materials to withstand harsh industrial conditions, ensuring long-term reliability and minimal maintenance.
  • Intuitive Control System: Equipped with a user-friendly digital control panel for easy monitoring and precise adjustments, allowing for real-time system management.
  • Low Noise Levels: Designed for quiet operation, making it an excellent choice for environments where noise control is essential.
  • Eco-Friendly Refrigerant: Utilizes environmentally safe refrigerants that comply with global standards, helping to minimize environmental impact.



Specification:





Voltage3/N/PE 380/220V 50Hz
Cooling capacitykW/h50HZ-113.58 60HZ-132.89
Kcal50HZ-97675 60HZ-114280
CompressorpowerkW30.00
typeHermetic scroll type or piston
RefrigeranttypeR22, R404A, R407c, R134A
CondensertypeEfficient brass sets of corrugated aluminum fin
FanpowerKW3.1
air volumem³/h40000
EvaporatortypeImmersion/plate / shell and tube High-Efficiency Heat Exchangers
water flowm³/h19.53-22.85
Pipe dimensionG3"
PumpPowerKW4.0
Liftm25
Protection deviceHigh-pressure protection, low-pressure protection, overload protection, antifreeze protection, flow protection
Ambient temperatureºC3-room





Applications:



  • Plastic Injection Molding: Provides efficient cooling for molds, improving cycle times and enhancing product quality.
  • Food and Beverage Processing: Maintains critical temperatures during processing and storage, ensuring compliance with safety and quality regulations.
  • HVAC Systems: Enhances cooling efficiency in large commercial and industrial facilities, promoting comfort and energy savings.
  • Chemical and Pharmaceutical Industries: Supports temperature-sensitive processes, ensuring stability and safety in production.



Benefits:



  • Maximized Productivity: Reliable cooling improves operational efficiency, reducing downtime and increasing overall output.
  • Cost Savings: Energy-efficient design leads to lower utility costs, while durable construction minimizes repair and replacement expenses.
  • Improved Quality Assurance: Stable temperature control ensures higher product quality and reduces defects, leading to enhanced customer satisfaction.
  • Sustainability Focus: Compliance with eco-friendly standards supports corporate responsibility initiatives, helping businesses achieve their environmental goals.



Enhance your industrial cooling capabilities with our 40HP Air-Cooled Industrial Chiller—where superior performance meets durability, driving efficiency and productivity in your operations.
